LS Twin Turbo Sandrail

GPHeaders’ Stainless Steel Turbo Headers are available for most popular applications such as Big and Small Block Chevys, Big and Small Block Fords and LS engines.

Our Turbo Headers are constructed from an American made 304 Stainless Steel and are fully purge TIG welded with 3/8” thick header flanges on our off the shelf headers. We incorporate Double Slip Merge collectors on higher HP & extreme abuse applications (See LS Twin Turbo Sandrail image) to help reduce thermal stress which causes header failure.

These double slip merge collectors allow the Turbo Header primary tubes to move slightly while decreasing exhaust gas leaks at the slip joints. Since all of our fabrication is done in house, visit our Contact Us page to see how we can configure your next set of Turbo Headers to meet your needs.

Stainless Turbo Header Options

  • 3/8” or 1/2” thick header & turbo flanges
  • Open end collector outlet
  • V-Band collector outlet
  • Weld on formed collector
  • Double-Slip Merge Collector
  • 304 or 321 Stainless Steel
  • Turbo elbows
  • Custom wastegate location
  • Unlimited Header Primary Tube sizing

Stainless Turbo Header Pricing

  • $150-300 Turbo inlet elbows, Price varies upon design.
  • $1550 Weld on collector with open end (Img. 2)
  • $1650 Weld on collector with V-Band outlet (Img.3)
  • $1975 Double slip merge collector with V-Band outlet (Img.4)

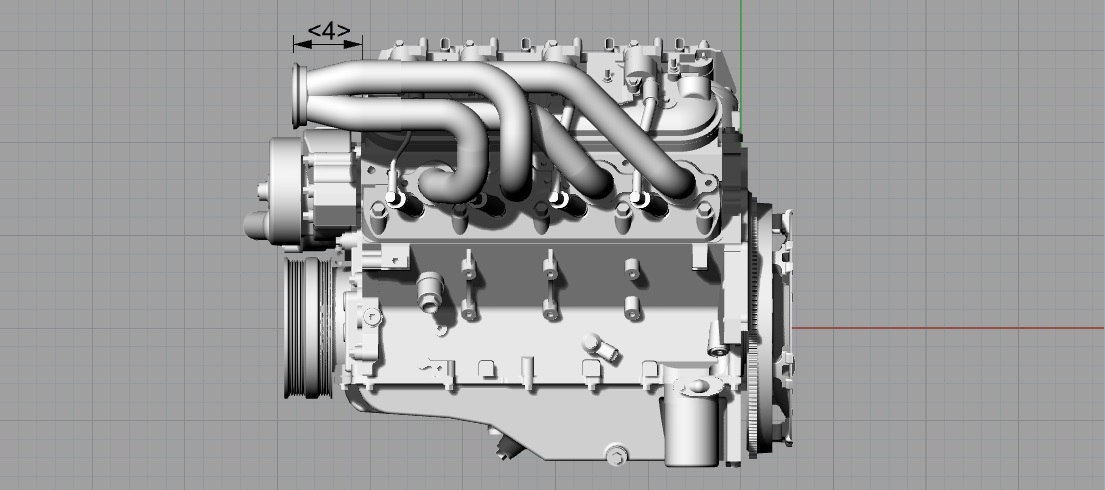

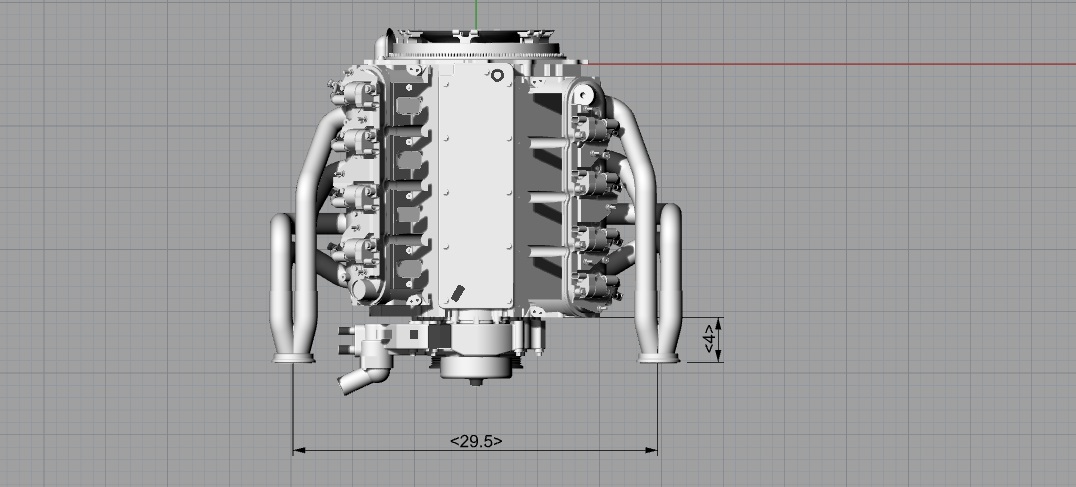

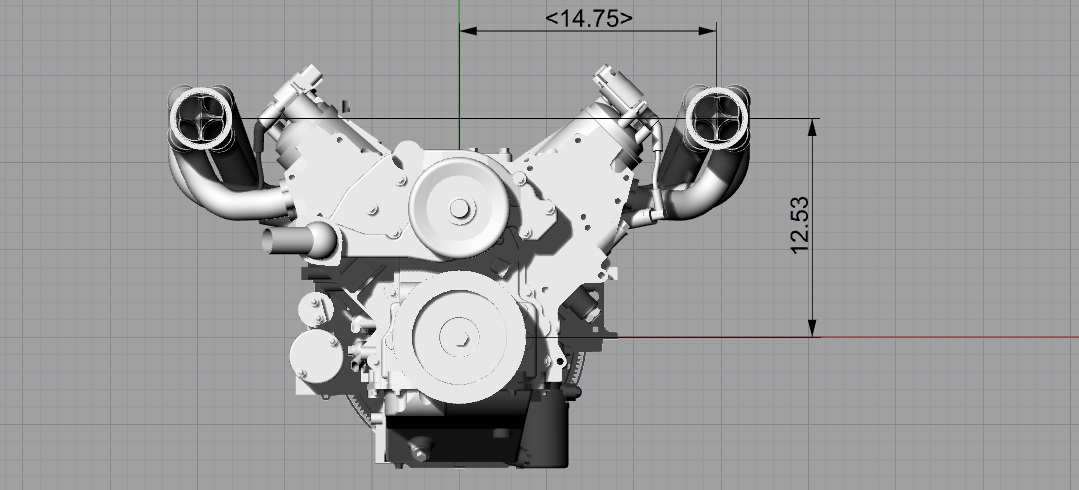

Stainless Turbo Header Dimensions

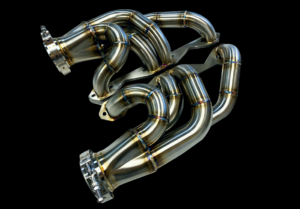

  • Small Block Chevy Up & Forward Headers

Contact Us for Pricing on Your Next Header Project
